Open Head Pail – Nested

Tapered body design allows pails to be nested to maximize storage space and freight costs Most versatile and durable design for a wide range of products Most cost effective design depending on configuration Three different cover options are available Will hold a variety of products including hazardous materials Strong wire bail handle with grip allows for ease of handling and pouring Made with Triplex® which allows for the highest valid UN rating available

UN Drop Test

Metal Decoration (Lithography)

Interior Coating Selections

Pail Options

Standard Pail Sizes for Nested Pails (in gallons)

2.5  |  3  |  3.5  |  4  |  5  |  5.3  |  5.5  |  6  |  6.5  |  7  |  7.5

Pail sizes vary by height only, custom sizes available upon request

We offer three different types of cover designs for our open head pails. Covers are available in standard colors, premium colors or lithography.

NON-REGULATED DESTACKER LUG COVER

Removable light gauge 16 lug steel cover for use with Non-UN rated steel pails

Pneumatic or manual crimper strongly recommended for proper closing

Destacking feature allows the covers to separate easily

Non re-sealable Accepts all fittings

UN HI-PERFORM™ LUG COVER

Removable heavy gauge 16 lug steel cover for use with UN rated steel pails

Pneumatic crimper strongly recommended for proper closing

Non re-sealable Accepts all fittings

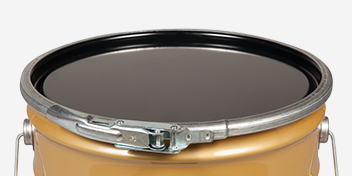

RING SEAL COVER WITH LEVER LOCKING RING

Removable heavy gauge ring seal steel cover and lever locking ring combination used for both UN rated and Non-regulated packages. For a UN rating, use only certified lever locking rings provided by CSC.

Tamper evident seal available

Re-sealable

Accepts some fittings

We offer a variety of different cover fitting options for dispensing or tinting your products including:

  • Extendable pour spouts
  • 2” and 3⁄4” drum fittings in both nylon and steel
  • Tint and vent plugs
  • Plastic and metal screw caps and dust caps

For a complete list of fitting options please contact us.

Pour Spouts and Tint Fittings
2” & 3/4” Drum Fittings
Vent Plug and Dust Caps
UN HI-PERFORM ™ LUG COVER WITH RIEKE FLEX SPOUT & STOLZ FITTING CLOSED
UN HI-PERFORM ™ LUG COVER WITH RIEKE FLEX SPOUT & STOLZ FITTING OPEN

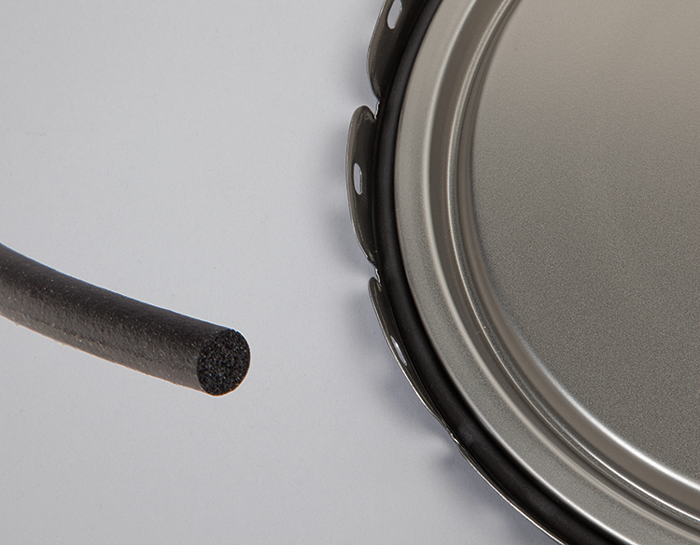

We offer 3 different cover gasket options. Our most common and cost effective gasket is our standard flowed-in latex rubber gasket. We also offer a hollow and solid core tube gasket for specific applications.

FLOWED-IN GASKET
HOLLOW TUBE GASKET
SOLID CORE TUBE GASKET

We recognize the need for a proper crimp on our UN-rated and Non-regulated steel pails & covers.

For those using a UN rated package, a proper crimp is critical to achieving a valid UN rating on our containers. Our pails and covers are designed to be crimped according to our UN closing instructions.

The only way to achieve a proper crimp is to use a closing tool designed and calibrated to crimp heavy gauge UN rated covers. To help achieve this proper crimp, you may contact Tony Stetson tstetson@cscpails.com or 330-968-1151.

Purchase Closing Tools

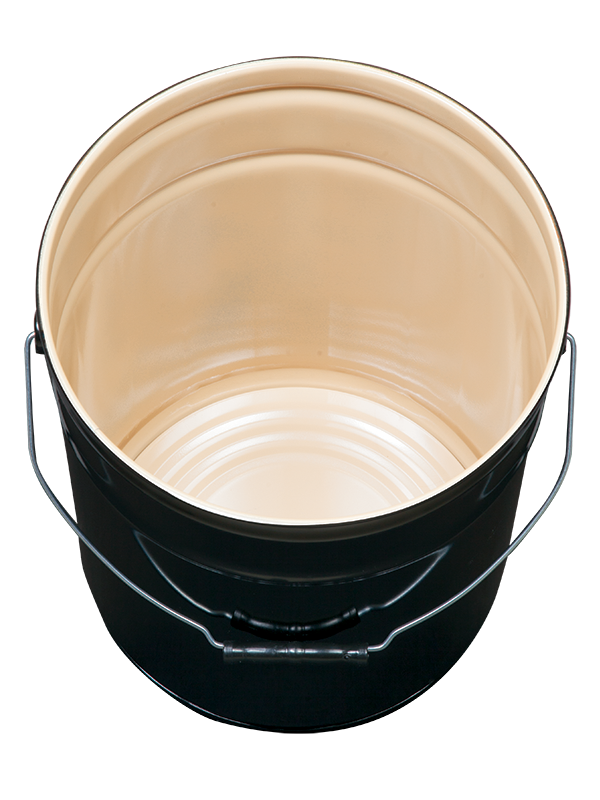

We offer several different interior coating options that are compatible with a wide variety of products. If requested , we can assist you in selecting the proper interior coating for your products. We strongly recommend that our customers conduct testing on the interior coating to determine final compatibility for your products.

RUST INHIBITOR

The purpose of a rust inhibitor is to slow down the formation of rust. It is not intended to act as a protective lining. With time and exposure conditions, the formation of rust may still occur. If rust concerns are an issue, then the use of a lined pail will prevent the formation of environmental rust. These inhibitors have limited chemical resistance to most products but are not as good as the epoxy-phenolics or straight 100% phenolic linings options.

EPOXY PHENOLIC

The advent of epoxy resin has improved the flexibility of the lining and has excellent resistance to alkaline products. In general, the epoxy-phenolic lining has been designed to provide outstanding chemical resistance for products that have a pH range of 7.0–9.0. Typical products packaged, are alkaline products, fatty acids, detergents, emulsions, foods, general organic chemicals, surfactants, and water based resins.

RED PHENOLIC

Red phenolic linings are unmodified phenolics and as such, have a high degree of acid and solvent resistance, and are not recommended for alkaline products. In general, they are designed for holding products that have a pH range of 3.0–7.0. A properly cured lining will exhibit good adhesion and limited flexibility. Typical products which do not affect the lining are acid compounds, agricultural chemicals, insecticides, corrosive chemicals, solvents and solvent containing materials, nitrocellulose lacquers and inks, food products, essential oils and petroleum products.

GREEN PHENOLIC

Green phenolic linings are unmodified phenolics and as such, have a high degree of acid and solvent resistance, and are not recommended for alkaline products. In general, they are designed for holding products that have a pH range of 3.0–7.0. A properly cured lining will exhibit good adhesion and limited flexibility. Typical products which do not affect the lining are acid compounds, agricultural chemicals, insecticides, corrosive chemicals, solvents and solvent containing materials, nitrocellulose lacquers and inks, food products, essential oils and petroleum products.

GOLD PHENOLIC

Gold phenolic linings are unmodified phenolics and as such, have a high degree of acid and solvent resistance, and are not recommended for alkaline products. In general, they are designed for holding products that have a pH range of 3.0–7.0. A properly cured lining will exhibit good adhesion, however; compared to the red and green phenolic lining it is less flexible. Typical products which do not affect the lining are acid compounds, agricultural chemicals, insecticides, corrosive chemicals, solvents and solvent containing materials, nitrocellulose lacquers and inks, food products, essential oils and petroleum products.

Standard Exterior Colors

Standard colors are white, gray and black

Premium Exterior Colors

Premium colors shown do not represent actual color or our entire color selection. Please contact us for a color chip for color matching.

Let us help you design your lithographed steel pail or cover and turn your steel pail into a cost effective marketing tool. We do all of our printing in-house using either conventional or UV ink with state of the art computer controlled ink applicators on our printing presses. To help maintain short and consistent lead-times, all of our pail manufacturing plants have their own metal decorating operations.

Spot Colors

Spot color designs can be cost effective when utilizing only a few solid colors. A lithographed pail or cover will allow you to proudly display your company name, logo or color. It also provides plenty of print area for product information, application instructions, hazardous and warning statements and other important information. A varnish overcoat is applied to protect your design.

Process Colors

Process color designs allow for photographic images to be printed with crystal clear detail. The images are created from process colors – cyan, magenta, yellow and black (CMYK). This type of lithography will feature your product’s full potential such as life- like water droplets, wood grain and fabric texture.

Inserts, Liners, and Specialty Products
